In mining sorting industry, ore color sorting machine is also called sensor-based sorting technology. Use optical color (CCD color camera) combineX-Ray sorting technology and NIR (Near Infrared Spectrometry) to pick out the impurity of ore, minerals, stone and sand products, separate ore into two or more categories.
Technical Parameters
|
Model
|
OCSS1280 Type Ore Color Sorter Machine
|
|
Layer No.
|
Double Layer
|
|
Output (T/h)
|
2-5cm
|
9-17
|
|
4-8 Mesh
|
7-10
|
|
10-16 Mesh
|
4-6
|
|
20-30 Mesh
|
1.5-3.5
|
|
30-40 Mesh
|
1-2
|
|
Carryover (bad: good)
|
≥20:1
|
|
Accuracy (%)
|
≥99%
|
|
Voltage (V/Hz)
|
220V/50HZ
|
|
Power (Kw)
|
3.5-7
|
|
Air pressure (Mpa)
|
0.6-0.8
|
|
Consumption (L/min)
|
2000-2800
|
|
Weight (Kg)
|
1700
|
|
Dimensions (mm)
|
2500*2030*2590
|
Automatic Diamond Sorting Machine High Stability Quartz Color Sorter Technical application
1.Wet operation can be carried out,and sorting can also be performed on the water-containing ore.
2.based on the difference in the cokor of the ore,to achieve metal ore,non-metallc ore preselection,roughing operations
3.widely used in quartz,feldspar,calcite,marble and other non-metallc minerais and tungsten,manganese,molytodie-num,lead,zinc,copper,gold,slver,tin,hematite and other metal minerals.
Automatic Diamond Sorting Machine High Stability Quartz Color Sorter Function:
When color sorter is working, feed hopper in the materials under the action of vibrator is uniform distribution in each chute. The CCD signal while the materials are dropping is in testing. If it is found that there are unqualified materials or impurities in the materials, the ejector will blow the defective goods in the hopper.
Automatic Diamond Sorting Machine High Stability Quartz Color Sorter Features
1. Application of air-cooled system
The application of air-cooled system has solved the problems of high temperature, heavy energy loss and short service life – all of which were caused by longtime utilization of an LED light source, ensuring the durability of an LED light source under a constant temperature.
2. Color image acquisition system
Using high-definition color CCD camera image acquisition system, to achieve material (RGB) red, green and blue three color information acquiring, depth recognition tiny fine color sorter can choose other impurities. Transparent or non transparent selection of transparent material.
3. Cloud object link system
Autonomous cloud control, cloud computing technology, the realization of online operations, online monitoring, online services, free upgrades.
4. Image processing system
International high-end color line scan technology, the International frontiers of DSP+FPGA processing technology, CCD reached 5400 X 10K scan capture, color and shape of the combination of a variety of models of complex intelligent algorithm, for different ore materials provide “the color selection and shape selective penetration of the solution.
5. Solenoid Valves
The only independently developed dedicated solenoid valves with independent intellectual property rights for color sorters in the industry; special high-strength materials, strong suction, no residual magnetism, linear flow, precise blow, high consistency, significantly lowered optimal carryover; gas consumption for removing 1 ton materials is reduced by 20-30%; the frequency can be up to 1200hz per second, the fastest response time is within 0.5m/s, the service life is 5-10 billion times.
6. Operating system
With intelligent operating platform, the system can be mastered and operated easily, turning the intelligent communication between human and machine into reality and eliminating all your concerns about operating.
7. Light source processing system
Using LED light source background board, intelligent flexible conversion of the background light RGB color, set more simple.
8. Circulating ash cleaning system
Round high-strength glass, 360 degree automatic rotation cleaning, without shutdown timer cleaning, improve the efficiency of the machine and sorting effect.
9. Dust removal system
The original dust removal system, can remove raw material attached to the ethereal matter, dust automatic winnowing, effectively enhance the color sorting accuracy and effectiveness.
10. Double sorting mode
According to the different needs of customers can be set flexibly realize the sorting can lower again to check, no need to replace the function of the hopper.

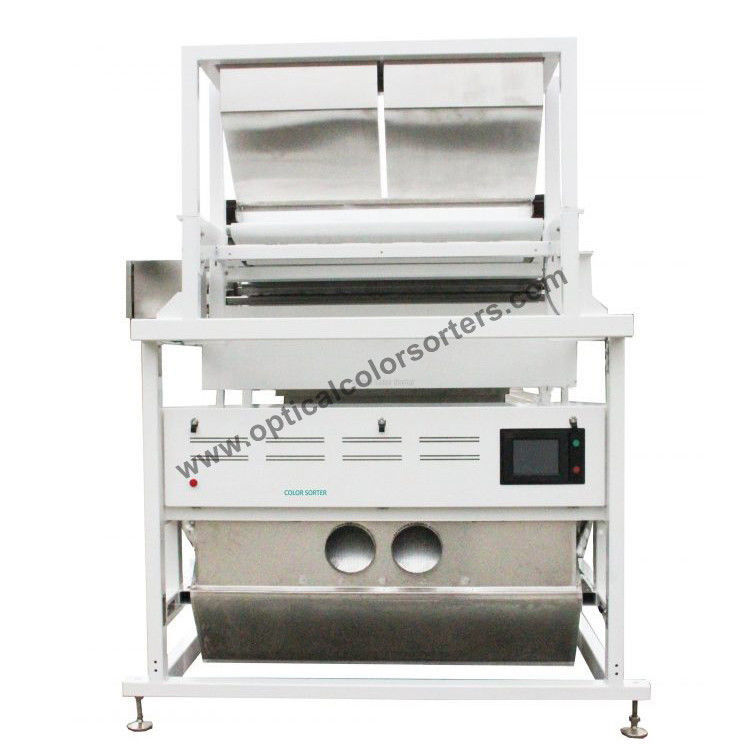

Automatic Diamond Sorting Machine High Stability Quartz Color Sorter Show
