High Capacity High Accuracy Rice CCD Camera Sorter that are used on the production lines in bulk food processing and other industries. They separate items by their colors, detecting the colors of things that pass before them.
The rice sorting technology is according to the color differences of rice (husked paddy) materials, using a high-resolution CCD optical sensor to separate different stones, black rice, etc. It is the final step after polishing rice with a rice polisher. Sorting machines improve product quality and add social benefits.
High Output CCD Rice Sorting Machine 8 Chute Intelligent Operation Interface Features:
1. More high-end CCD camera, can distinguish flaw which are less than 0.04 mm², glasses and resin etc, increase sorting impression to a higher level.
2. Scientific and reasonable optics-design, more clear for light yellow, distinguish wider rang.
3. Reasonable heat output device, ensure all spare parts be working in the room tepurature, SNR is better, not only increased the accuracy of sorting, but also extended the life of machine.
4. More intelligent software, can distinguish all kinds of atherosclerosis grain easily and totally improved the accuracy of selection.
5. Humanization true color screen, visual effect is more clear, operation is more easier.
6. Professional high frequency ejectors, save more air, reaction velocity is more quick, rate of accuracy is higher, and longer life, working with intelligent software, ensure the good rejection and excellent accuracy.

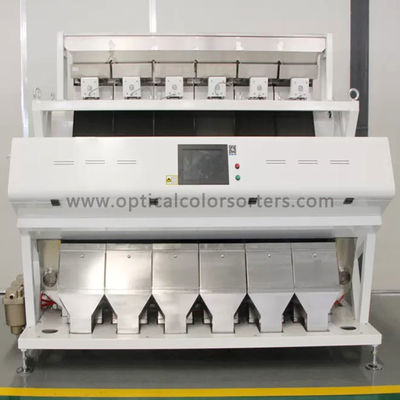

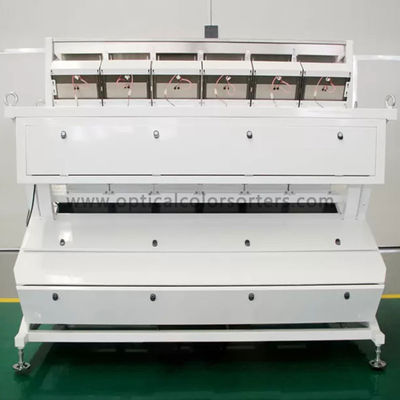

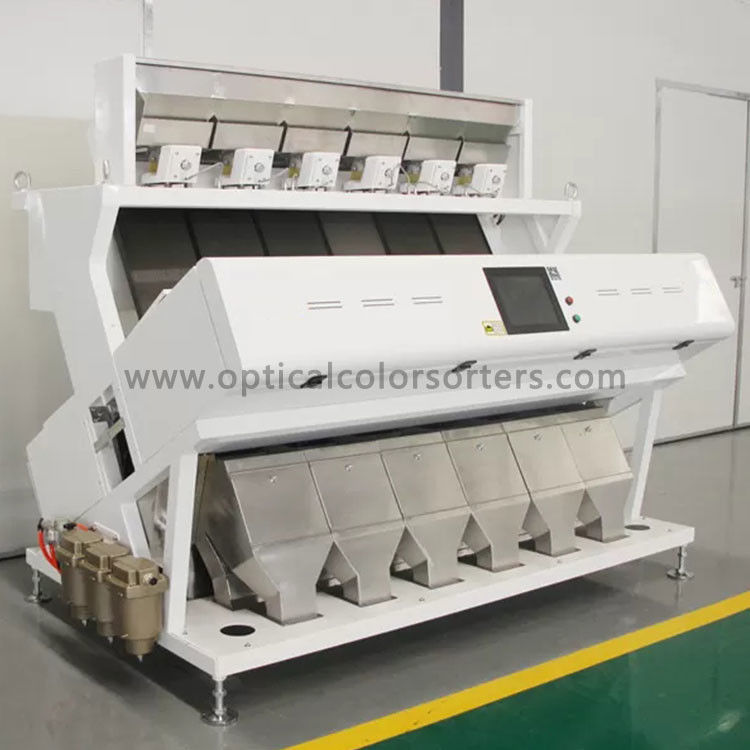

High Output CCD Rice Sorting Machine 8 Chute Intelligent Operation Interface Technical Parameter
| Model |
6SXM-378(CCD) |
| Output(T/h) |
5.0~8.0 |
| Carryover Rate(Bad:Good) |
>12.5:1 |
| Sorting Accuracy(%) |
≥99.99 |
| Voltage (V/Hz) |
220V 50HZ |
| Power Supply(Kw) |
≤3.6 |
| Pressure(Mpa) |
0.4-0.6 |
| Weight(Kg) |
1400(±5%) |
| Diamension(mm) |
2528*1595*2040 |

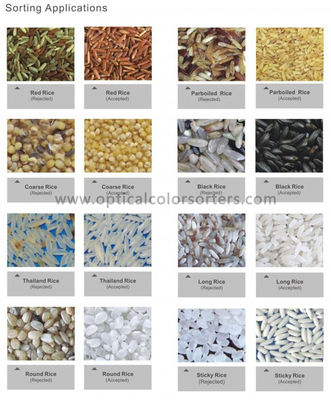

Sorting example
Long Grain Rice Raw Material
Long Grain Rice Accept
Long Grain Rice Rejection
Black Rice Raw Material
Black Rice Accept
Black Rice Rejection
High Output CCD Rice Sorting Machine 8 Chute Intelligent Operation Interface Working principle
Rice processing begins in a milling plant, where the harvested grains run through a production line where the paddy is boiled, dried, de-stoned, husked, hulled and shelled into rice. It then is taken to the color sorter machine. At this point, the rice mixture will travel by elevator belt into a hopper on top of the machine, from which it will flow down along chutes in the colour sorter, streamlining their flow to so that they may be scanned by CCD sensors. The moment the camera detects any color defects, the camera instructs ejectors fitted in the machine to open the nozzle. The nozzle is connected to valves containing compressed air. This air is then used to shoot out the color defected material from the input rice. The types of defects in rice include black tipped, chalky, yellow, mouse droppings, immature grain, etc.
Our Service
1. The company persists in the “Service is Available at Any Time” guidelines, advocates all staffs to pay close attention to the customer demands at any time, and endeavors to provide the solutions for the domestic and overseas customers.
2. At present, the company has more than 30 after-sales service staffs, who offer the service extending to the prefecture level, contact the customers directly, provide the timely, rapid and considerate service for the customers, and realize the door-to-door service within 72 hours.
3. Carry out one-year free maintenance and care of the complete machine for the customers, provide the professional training and technical guidance timely to solve the worries of the customers, and reflect the service mode of fast response, imely maintenance and tracking coordination fully.
